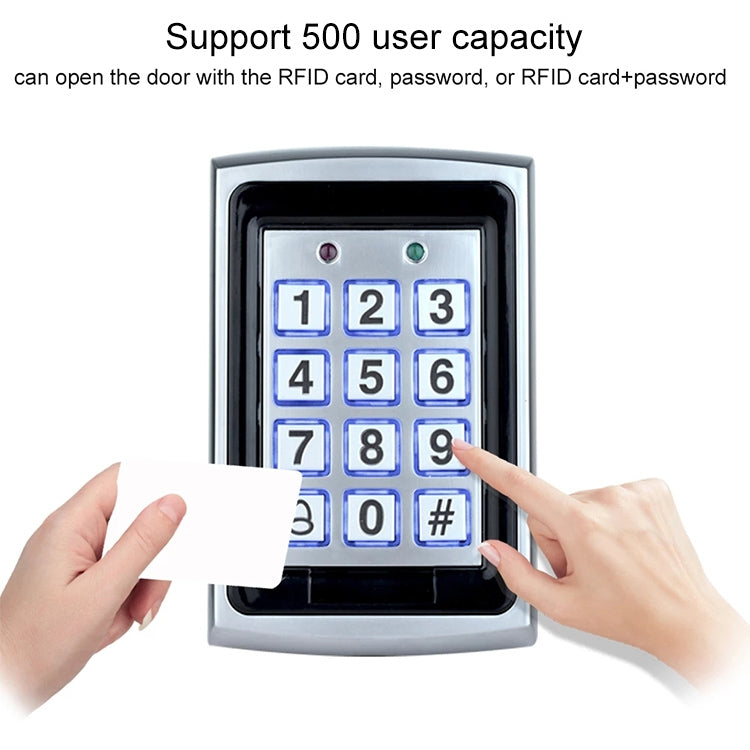

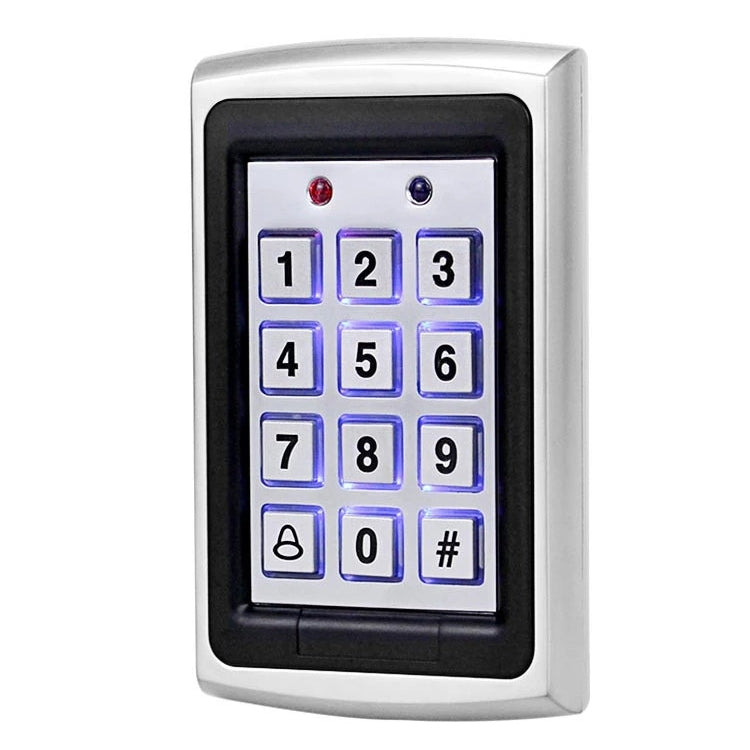

This is a vandal resistant proximity card and keypad access control unit suitable for external applications. The unit accepts up to 500 users and provides entry via the use of proximity cards and/or pin codes.
Technical Specification:
1. Operating Voltage:
12VDC From a Regulated Power Supply Input current:
Standby: 40mA Not including attached devices
Max: 130mA Not including attached devices
2. Outputs:
Lock Strike Relay From C, 5A
Auxiliary Relay From C, 5A
LockStrike Control Output Collector Open Output (25mA)
Auxiliary Control Output Collector Open Output (25mA)
3. Inputs:
REX: N.O.,Dry Contact
Auxiliary Input (In/Monitor): N.C.,Dry Contact in
Monitor Mode: N.O.Dry Contact Input Mode
4. Built-in Proximity reader
Read Range: 65mm
Modulation: ASK at 125 kHz
Compatible Cards: ALL 26-Bit EM Cards
5. Mechanical Characteristics
Dimentions: 120L*76W*27Hmm
Weight: 450g
Range also depends on electrical environment and proximity to metal.

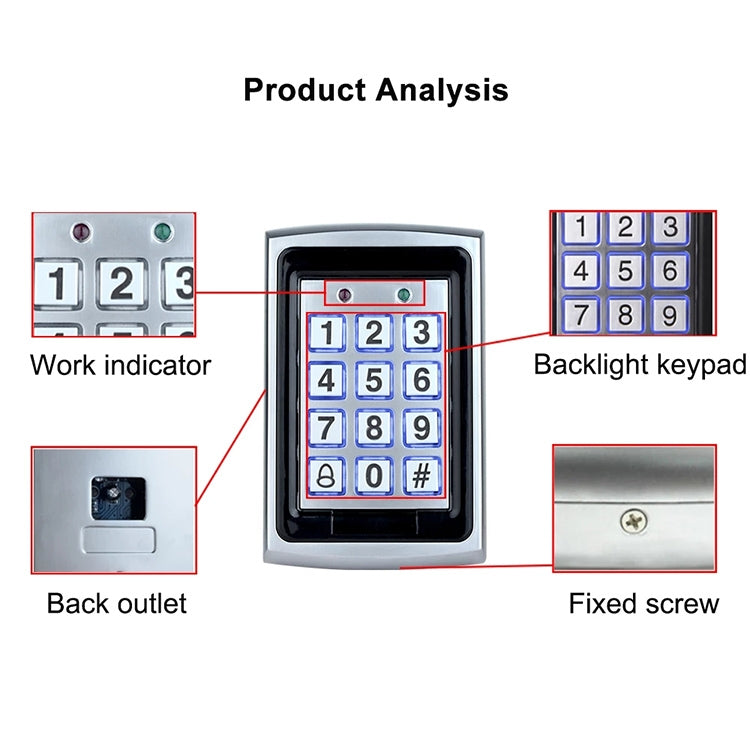

Features:
1. Built-in Proximity Card Reader (125KHZ ASK Modulation)
2. Built-in Keypad for PIN Code entry
3. Auxiliary Input & Auxiliary Output
4. Eight Auxiliary Modes including: Door Ajar; Forced Door; Shunt; Door Monitor; Normal / Secure
5. Internal Buzzer
6. Two Status/Programming Interface LEDS
7. Two Modes of Operation: Normal Mode; Secure Mode
8. Three User Levers: Normal User; Secure User; Master User

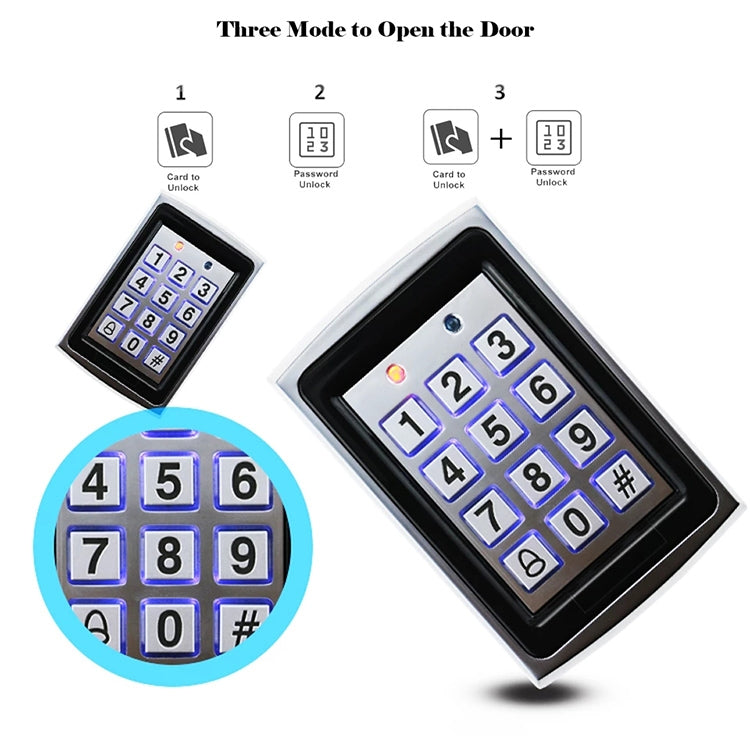

9. Four Open door mode: 4 digit Pin Code; 4 digit Pin Code & EM Card; 4 digit Pin Code & 1.4 digit Pin Code; EM Card & EM Card
10. Code search Feature that helps make maintaining user codes easier.
11. Built-in Case and Back Tamper Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies.
12. Programmable Siren Time.
13. Programmable Lock Strike Release Time.
單門門禁控制器
HK$180
目前無法提供取貨服務
Technical Specification:
1. Operating Voltage:
12VDC From a Regulated Power Supply Input current:
Standby: 40mA Not including attached devices
Max: 130mA Not including attached devices
2. Outputs:
Lock Strike Relay From C, 5A
Auxiliary Relay From C, 5A
LockStrike Control Output Collector Open Output (25mA)
Auxiliary Control Output Collector Open Output (25mA)
3. Inputs:
REX: N.O.,Dry Contact
Auxiliary Input (In/Monitor): N.C.,Dry Contact in
Monitor Mode: N.O.Dry Contact Input Mode
4. Built-in Proximity reader
Read Range: 65mm
Modulation: ASK at 125 kHz
Compatible Cards: ALL 26-Bit EM Cards
5. Mechanical Characteristics
Dimentions: 120L*76W*27Hmm
Weight: 450g
Range also depends on electrical environment and proximity to metal.
Features:
1. Built-in Proximity Card Reader (125KHZ ASK Modulation)
2. Built-in Keypad for PIN Code entry
3. Auxiliary Input & Auxiliary Output
4. Eight Auxiliary Modes including: Door Ajar; Forced Door; Shunt; Door Monitor; Normal / Secure
5. Internal Buzzer
6. Two Status/Programming Interface LEDS
7. Two Modes of Operation: Normal Mode; Secure Mode
8. Three User Levers: Normal User; Secure User; Master User
9. Four Open door mode: 4 digit Pin Code; 4 digit Pin Code & EM Card; 4 digit Pin Code & 1.4 digit Pin Code; EM Card & EM Card
10. Code search Feature that helps make maintaining user codes easier.
11. Built-in Case and Back Tamper Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies.
12. Programmable Siren Time.
13. Programmable Lock Strike Release Time.
